2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : DX68

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Max. Opening : 30mm

Crimping Force : 500T

System Pressure : 31.5Mpa

Color : Blue

Power : 3KW

Size : 670*430*820mm

Weight : 260Kg

Contact Now

DX68 Hydraulic Hose Crimping Machine
Product Overview
The DX68 hydraulic hose crimping machine is a professional-grade pipe press tool designed for domestic applications. With 500T crimping force and versatile operation modes, this machine offers both automatic and manual operation to suit different production needs. Equipped with wheels for easy mobility and a foot pedal for hands-free operation during crimping.
Key Features
  • Forged crimping cylinder with high hardness for durability
  • Multifunctional operation panel with dual operation modes
  • Integrated pressure gauge for clear system monitoring
  • Standard foot pedal for hands-free crimping operation
  • Built-in working light for enhanced visibility
Technical Specifications
Crimping Range14 - 87 mm
Crimping Force500 T
Hose Size1/4 - 2 inch
Maximum Opening30 mm
Die Sets10
Die Set Type51
System Pressure31.5 MPa
Accuracy0.05 mm
Control SystemMS
Standard Voltage220V / 380V
Motor Power3 KW
Dimensions (L*W*H)670 * 430 * 820 mm
Weight260 KG
2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper
51 Hose Crimper Die Sets
Die No.Crimping RangeLength
6*6 - 8 mm35
8*8 - 10 mm35
10*10 - 12 mm35
12*12 - 15 mm35
1515 - 19 mm60
1919 - 23 mm60
2323 - 26 mm60
2626 - 31 mm60
3131 - 36 mm70
3636 - 41 mm70
4141 - 47 mm70
4747 - 55 mm80
5555 - 63 mm80
6363 - 69 mm80
69*69 - 76 mm100
* Non-standard die sets. Customized die sets available upon request.
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
Premium Die Sets
10 sets of high-hardness dies (59-63HRC) for crimping hoses from 6mm to 51mm, ensuring precision and durability in every crimp.
2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper

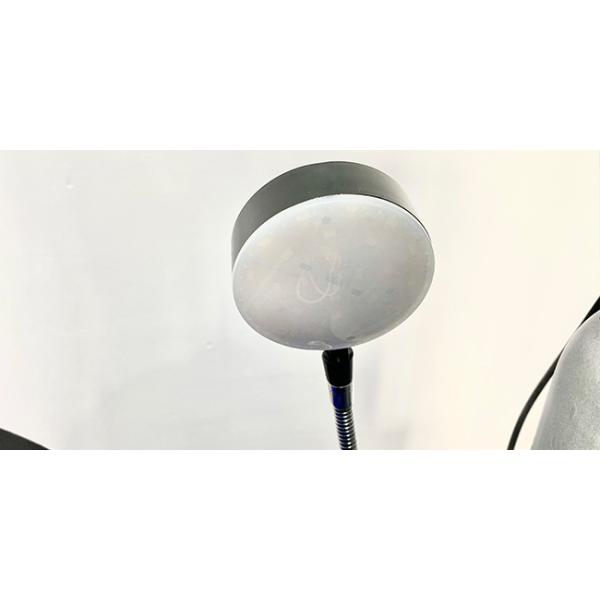

Integrated Working Light
The built-in working light provides clear visibility throughout the crimping process, ensuring safe and accurate hose assembly even in low-light environments.
2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper
Foot Pedal Operation
Standard foot pedal enables hands-free operation during pressure pipe and fitting swaging, making large-size hose crimping more convenient and efficient.
2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper
Custom OEM Services
Customized colors and designs available for all our cable crimping machines. OEM services offered to meet specific branding requirements.
2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper
Application Fields
Beyond standard hose assembly, this hydraulic crimping machine is versatile enough for cable pressing, low-pressure water pipes, wire crimping, rope swaging, automotive brake line fabrication, and various other industrial applications.
2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper 2 Inch Hose Crimping Machine DX68 Hydraulic Pipe Repairing Machine Hose Crimper
Additional Notes
Special voltage options available: 110V, 208V, 240V, 415V. Contact us for customized solutions and specific requirements.
